| بيع الوحدات: | Pair |
|---|---|
| نوع الحزمة: | تعبئة حالة خشبية |
تفاصيل التعبئة والتغليف: تعبئة حالة خشبية
إنتاجية: 50/p/d
نقل: Ocean
مكان المنشأ: الصين
الدعم: 50/p/d
رمز النظام المنسق: 8514390090
ميناء: Shanghai
الدفع نوع: L/C,T/T,Paypal
إنكوترم: FOB,EXW
يُعرف صندوق اختبار درجة الحرارة والرطوبة الثابتة أيضًا باسم آلة اختبار درجة الحرارة والرطوبة الثابتة ، وصندوق اختبار درجة الحرارة الثابت واختبار مقاومة الحرارة ، والمقاومة الباردة ، والمقاومة الجافة ومقاومة الرطوبة لمختلف المواد. مناسبة للهاتف الإلكتروني والكهربائي والهاتف المحمول والاتصالات والأداة والمركبة والمنتجات البلاستيكية والمعادن والطعام والمواد الكيميائية والبناء والطبية والفضاء وغيرها من المنتجات. المعيار: GB/T5170.5-2008 ، GB/T10586-2006 ، GB/T2423.1-2008 Test A ، GB/T2423.2-2008 Test B ، GB/T2423.3-2006 Test CA ، GB/T2423. 4-2008 اختبار ديسيبل
| Model | GDS-50 | GDS-100 | GDS-150 | GDS-225 | GDS-408 | GDS-800 | GDS-010 | |
| System | Balanced Temperature & Humidity Control System | |||||||

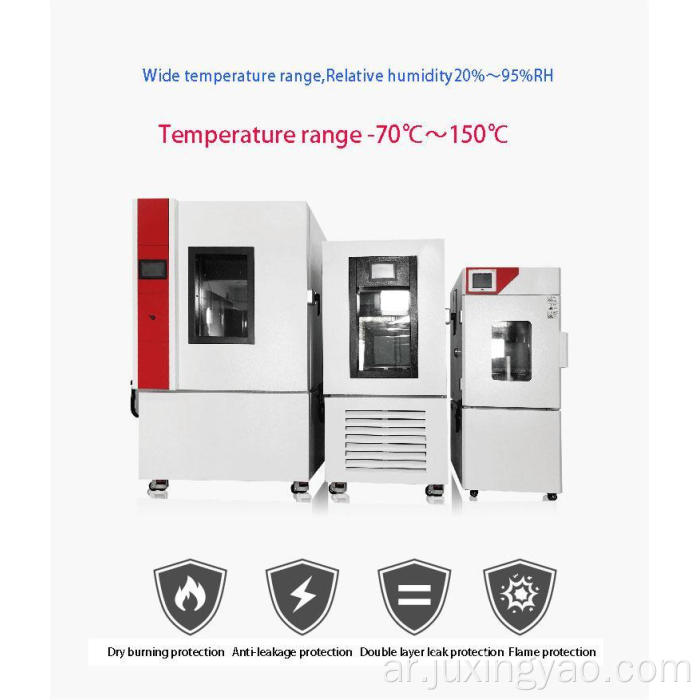

| Temp.Range |
-20℃～150℃；-40℃～150℃；-70℃～150℃ Rapid temperature nolinear (Linearly is option） |
|||||||
| Humidity Range | 20～98%R.H | |||||||
| Temp.fluctuation | ±0.5℃ | |||||||
| Humidity Fluctuation | ±2.5%R.H | |||||||
| Temperature Deviation | ±2.0℃ | |||||||
| Humidity deviation | ±3%R.H(≥75%R.H)/±5%R.H(＜75%R.H) | |||||||
| Heat Up Time | -20℃～150℃ about 40 minutes ,-40℃～150℃ about 60 minutes,-70℃～150℃ about 75 minutes | |||||||
| Pull Down Time | 20℃～-20℃ about 40 minutes ,20℃～-40℃ about 60 minutes,20℃～-70℃ about 85 minutes | |||||||
| Internal dimension | W | 350 | 500 | 500 | 600 | 680 | 1000 | 1000 |
| H | 450 | 500 | 600 | 750 | 800 | 1000 | 1000 | |
| D | 300 | 400 | 500 | 500 | 750 | 800 | 1000 | |
| External dimension | W | 550 | 700 | 700 | 800 | 880 | 1200 | 1200 |
| H | 1450 | 1550 | 1610 | 1710 | 1760 | 1950 | 1950 | |
| D | 1000 | 1150 | 1250 | 1250 | 1500 | 1550 | 1750 | |

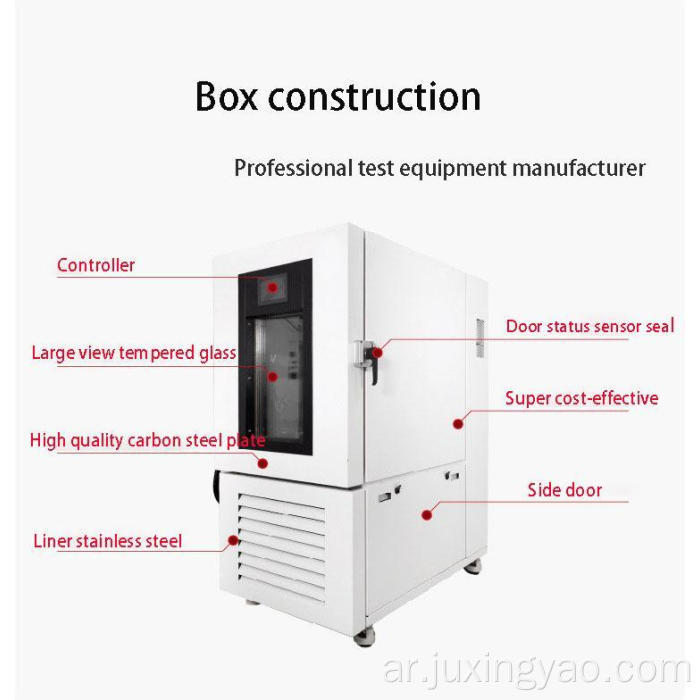

| Interior material | SUS#304 Stainless steel plate | |||||||
| Exterior material | Backed painting steel or stainless steel(SUS304) | |||||||
| Insulation material | Rigid polyurethane foam + glass fibre | |||||||

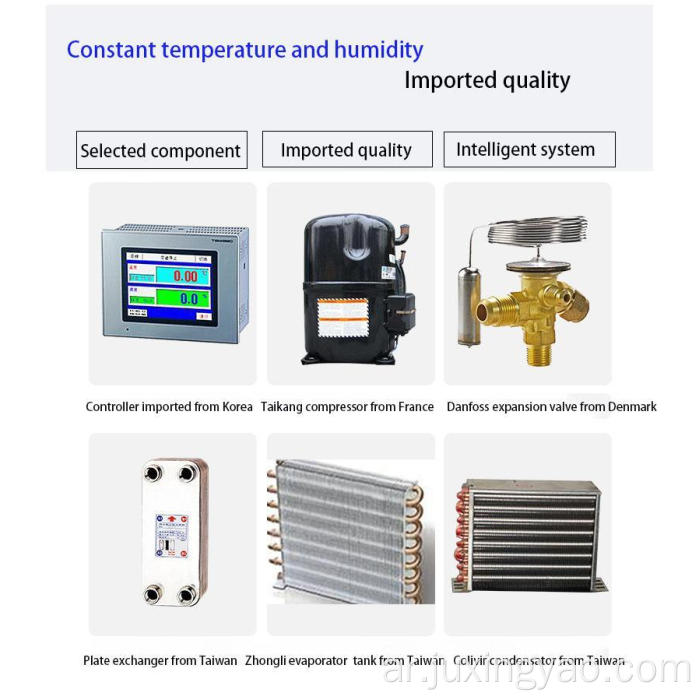

| Refrigeration system | Air cooled or (Water cooled type is option) | |||||||
| Single section/Cascade type,Hermetic/Semitight compressor,CFC free refrigerant | ||||||||
| Controller | Color LCD screen in English/Chinese.programing communicating function | |||||||
| Safety Devices | No welding wire switch,compressor overheating and over current protection,over pemperature protection,blower overload protection,dry heating machine protector,low water protection,fault warning system | |||||||
| Standard Accessories | one observation window,one test hole(Φ5cm),two sets of test racks,one floodlight,one indicator light,four moving wheels,one humidifying tank,2 meters of power cord,communication interface | |||||||
| Ambient Temp. | 5℃～35℃ | |||||||
| Power | AC380±10% 50HZ 3 phase 4wires+Groud wires | |||||||
| Note: The above specifications are for reference only, the actual specifications are mainly quoted | ||||||||
